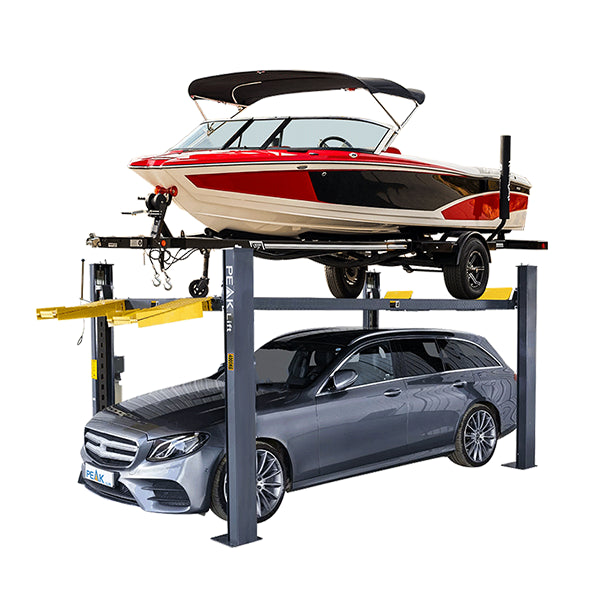

<h2>Peak 409-HPX</h2>
<div class="spec-section">
<h3><img src="https://cdn.shopify.com/s/files/1/0697/9741/3106/files/PEAK-Lift-409-hpx-boat-storage-lift-diagram_2813.png?v=1791401029" alt="" style="display: block; margin-left: auto; margin-right: auto;">Capacity</h3>
<table class="spec-table">
<tbody>
<tr>
<td>Lifting Capacity*</td>
<td>9,000 lbs. (4,000 kg)</td>
</tr>
</tbody>
</table>
</div>
<div class="spec-section">
<h3>Specifications</h3>
<table class="spec-table">
<tbody>
<tr>
<td><span class="dimension-letter">A</span> - Overall Length (Inc Ramps)</td>
<td>238.1" (6,049 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">B</span> - Outside Edge of Crossbeams</td>
<td>197.75" (5,022 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">C</span> - Overall Width</td>
<td>131.8" (3,350 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">D</span> - Width Between Posts</td>
<td>122.1" (3,104 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">E</span>- Max. Lifting Height</td>
<td>88.06" (2,237mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">E</span>- Max. Lock Height</td>
<td>85.3" (2,167 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">F</span>- Overall Height</td>
<td>96.6" (2,455mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">G</span>- Minimum Height </td>
<td>6.1" (155 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">H</span>- Max. Underneath Height</td>
<td>82.56" (2,097 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">H</span>- Max. Underneath Lock Height</td>
<td>79.8" (2,027 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">I</span>- Drive-Thru Clearance</td>
<td>111" (2,820 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">J</span>- Width Between Runways</td>
<td>46.5" / 64.9" (1,181 mm / 1,650 mm)</td>
</tr>
<tr>
<td><span class="dimension-letter">K</span>- Outside Edge of Runways</td>
<td>86.5" / 104.9" (2,179 mm / 2,666 mm)</td>
</tr>
<tr>
<td>Gross Weight</td>
<td>2,061lbs (935kg)</td>
</tr>
<tr>
<td>Motor</td>
<td>220 VAC / 60Hz / 1 Ph</td>
</tr>
<tr>
<td>Time to Full Rise</td>
<td>57 Seconds</td>
</tr>
</tbody>
</table>
</div>
</div>
