QuickJack™ Operation
The one-time setup means practicality and portability become reality. Simply position the frames under the vehicle and push Up on the hand-held pendant control. In 30 seconds or less, the entire car will be 21 inches high off the ground and ready for tire swaps, oil changes and other maintenance.
![](http://babco.ca/cdn/shop/files/Roll-QuickJack-Frames-Into-Position_800x.jpg?v=1722017674)

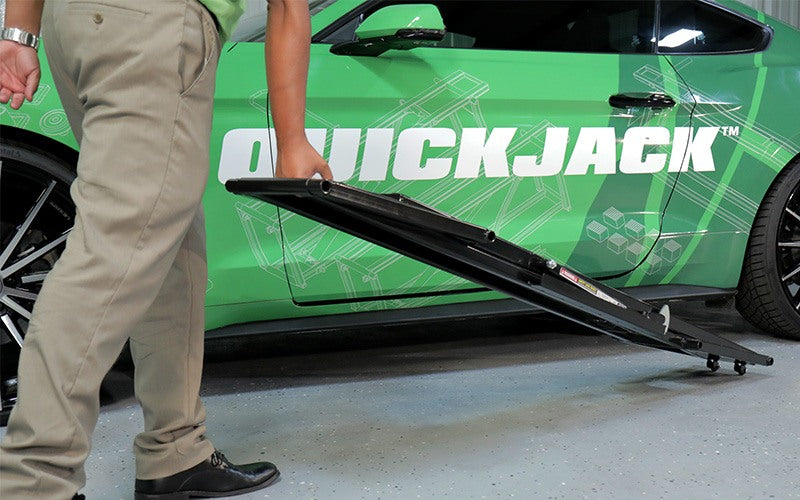

step 1
Roll frames into position
Mounted urethane wheels provide effortless rolling of the jack frames across your floor.
![](http://babco.ca/cdn/shop/files/Slide-QuickJack-Frames-Under-Vehicle_800x.jpg?v=1722017785)

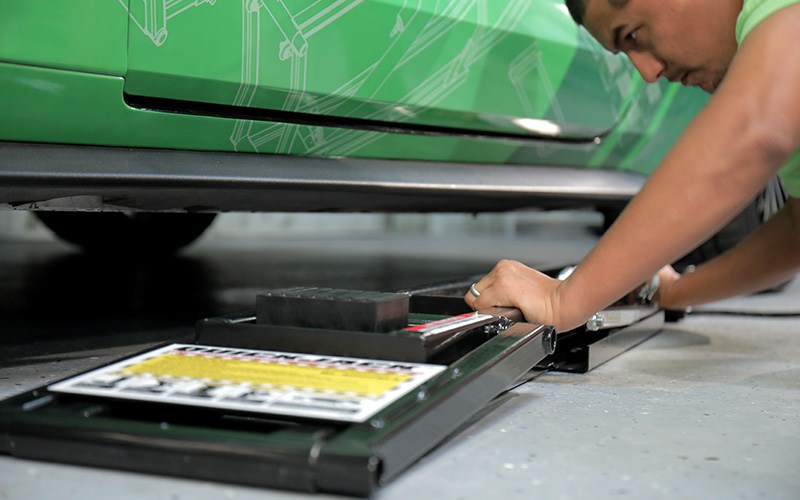

step 2
Position frames parallel to each other
Slide both QuickJack frames under your vehicle on a stable floor surface with both lock bars facing out.
![](http://babco.ca/cdn/shop/files/Connect-Power-Unit-Power-Source_800x.jpg?v=1722017911)
step 3
Connect power unit into an appropriate power source
Connect your 110V AC or 12V DC power unit to the appropriate power source to begin lifting.
![](http://babco.ca/cdn/shop/files/Setup-QuickJack-Power-Unit_800x.jpg?v=1722017384)

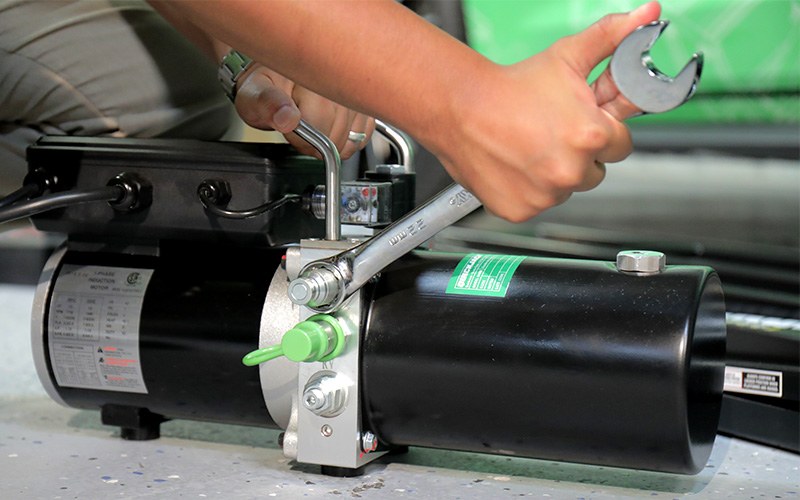

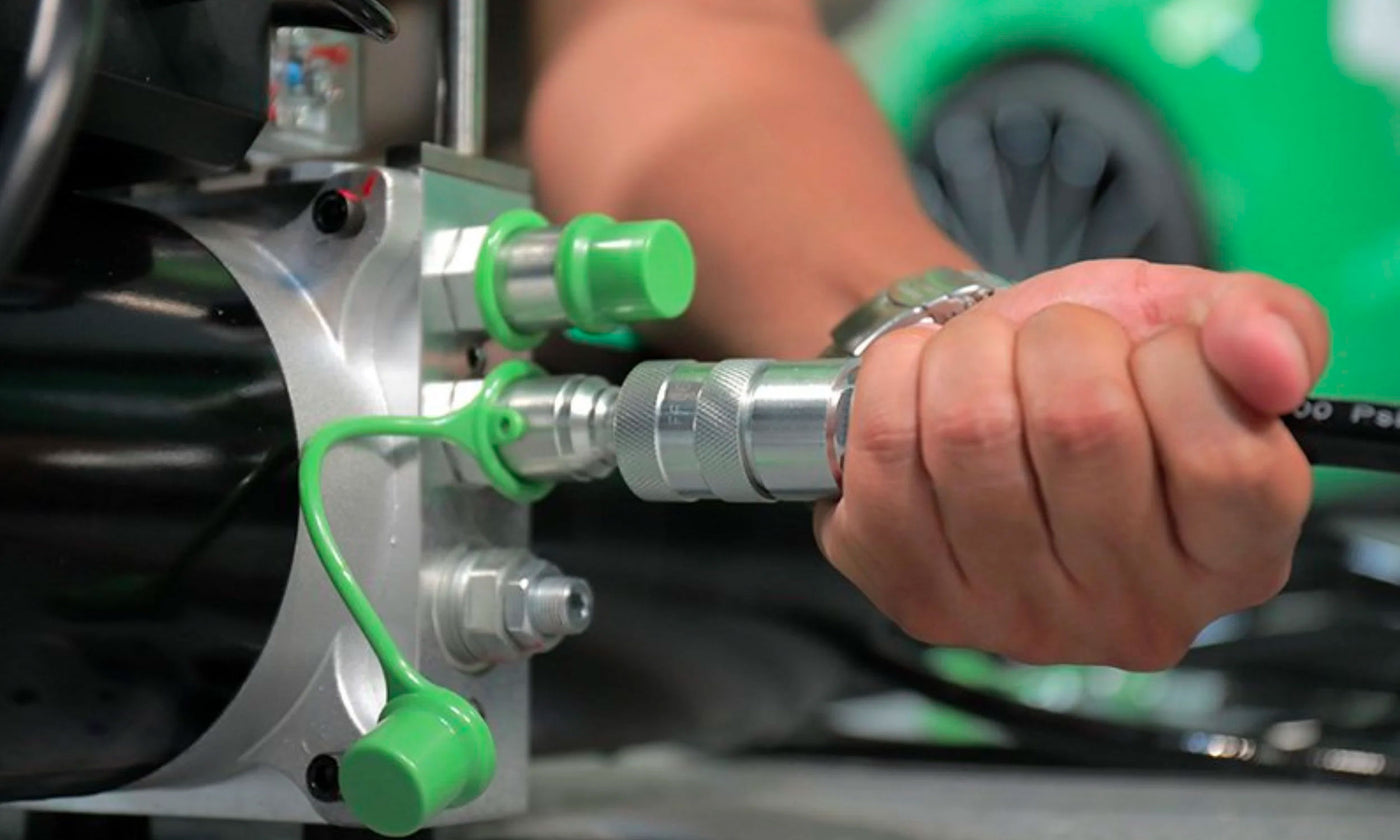

step 4
Set up power unit and fill with hydraulic fluid
Ensure the power unit fittings are secure, then funnel in 2.5 quarts of hydraulic oil or ATF fluid (not included).
![](http://babco.ca/cdn/shop/files/Lifting-Vehicle-With-QuickJack_800x.jpg?v=1722017990)

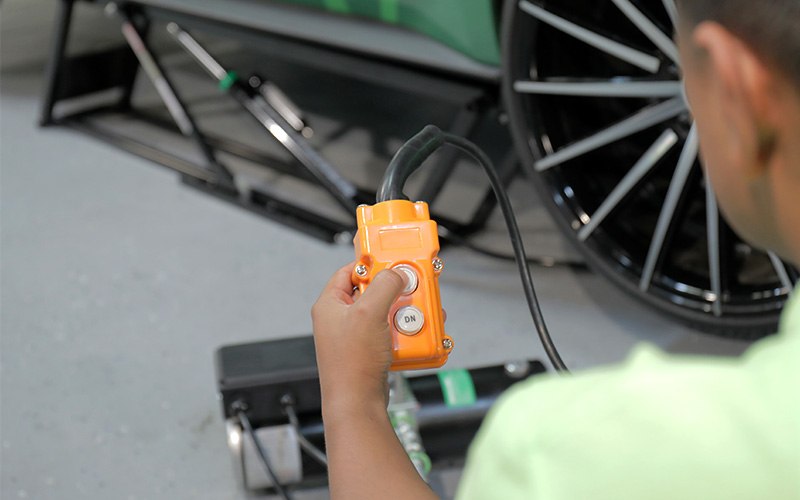

step 5
Raise your vehicle in seconds
Press Up on the pendant control until each jack platform reaches the mid-rise or full-rise position. Press down to settle the arm into the mechanical lock.
